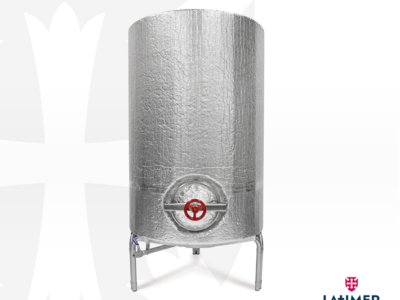

Boiler Tank 1000L
Product Code: B1000
Boiler Tank 1000L
Product Code: B1000
Product Description
The Boiler Tank 1000L (B1000) is the ultimate solution for high-volume brewing and distilling operations. With a massive 1000L capacity and 27kW three-phase power, this industrial-grade boiler is engineered to handle the most demanding production environments efficiently and reliably.
Constructed from premium 304-grade stainless steel, the B1000 features 50mm thick insulation to minimise heat loss and reduce energy consumption. This advanced thermal design ensures that even at boiling temperatures, the tank’s exterior remains cool to the touch, providing a safe and efficient operation.
The B1000 is equipped with a 300mm manway door for easy waste removal, a stainless steel false bottom to prevent blockages, and a chimney hose tail on the lid to accommodate a 5-inch flue liner pipe for effective steam venting. Designed as a workhorse for busy breweries, this boiler offers unmatched performance and durability.
£2999.00 ex VAT
Want to know more? Call us on 01536 645475
Boiler Tank 1000L Specification
Capacity (L)
1000
Diameter (mm)
1050
Height (mm)
2080
Insulation 50mm
Yes
Temperature gauge
No
Sparge Arm
No
Material
304-grade stainless steel
Dry weight (kg)
95
Control panel
No
Power Requirements
Three-phase
Power installed (kW)
27
300mm Manway Door for Easy Cleaning
The large 300mm manway door allows for quick and efficient removal of solid waste after use, streamlining the cleaning process and minimising downtime.
Energy-Saving Insulation
The boiler features 50mm thick insulation, ensuring minimal heat loss. Even at boiling temperatures, the tank’s exterior remains cool to the touch, maximising energy efficiency and safety.
False Bottom for Clog Prevention

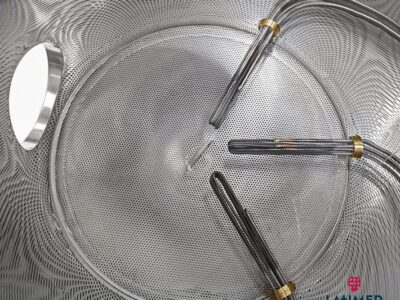

A stainless steel false bottom captures large particles that might otherwise block the outlet, ensuring smooth operation and consistent performance during boiling.
Integrated Steam Ventilation
The lid is equipped with a chimney hose tail, enabling the attachment of a 5-inch flue liner pipe to safely vent steam generated during the boiling process, maintaining a safe and efficient workspace.
Additional Features
- Built for high-volume operations, ideal for busy breweries and distilleries.
- Designed for industrial-scale production with reliable and consistent performance.
- Lightweight at 95kg for its capacity, allowing easier installation.
- Designed for efficient boiling with reduced energy consumption.
- Insulated design keeps water hot for extended periods, improving energy efficiency.
- The sturdy three-legged stand ensures the tank remains securely in place during use, providing safety and reliability.
- Thanks to its stainless steel construction and simple design, the tank is easy to clean and requires minimal upkeep, saving you time and effort.
- Resistant to corrosion and wear, ideal for long-term use.
Boiler Tank 1000L Videos
Frequently Asked Boiler Tank 1000L Questions
What are boiler tanks commonly used for?
Boiler tanks are used across brewing, distilling, and other production industries to heat and boil large volumes of liquid efficiently, making them essential for processes that require precise temperature control and rapid heating.
Can this boiler handle solid waste effectively?
es, the 300mm manway door and false bottom ensure easy waste removal and prevent outlet blockages during use.
How energy-efficient are Latimer Ales' Boiler Tanks
Our Boiler Tank’s 50mm thick insulation minimises heat loss, making it highly efficient and reducing overall energy consumption.
What is the purpose of the chimney hose tail?
The chimney hose tail allows you to attach a 5-inch flue liner pipe to safely vent steam produced during the boiling process.
