Hot Liquor Tank 750L
Product Code: H0750
Hot Liquor Tank 750L
Product Code: H0750
Product Description
The Hot Liquor Tank 750L (H0750) is a fully insulated, high-capacity stainless steel vessel designed for precision heating and storage of hot water. Perfect for large-scale brewing operations, the H0750 offers advanced features that ensure consistent temperature control and energy efficiency, making it an indispensable addition to your production process.
Equipped with a digital control panel, the tank allows users to program and monitor temperatures up to 99°C. Once the target temperature is achieved, the tank maintains it within a 1°C variance, ensuring consistent results. The tank’s 50mm thick insulation, with a Lambda value of 0.022 W/mK, minimises energy usage, making it cost-effective and efficient.
The H0750 operates on a standard 240-volt power supply, eliminating the need for expensive three-phase systems. It includes a single 1-inch outlet tap for easy liquid dispensing and is constructed from durable 304-grade stainless steel, ensuring long-lasting reliability and hygienic operation.
£1499 ex VAT
Want to know more? Call us on 01536 645475
Hot Liquor Tank 750L Specification
Capacity (L)
750
Diameter (mm)
920
Height (mm)
2010
Insulation 50mm
Yes
Temperature gauge
Yes
Sparge Arm
No
Material
304-grade stainless steel
Dry weight (kg)
50
Control panel
Yes
Power Requirements
240V
Power installed (kW)
6
Digital Temperature Control for Precision Brewing
The H0750 is equipped with an advanced digital control panel that allows you to set and monitor temperatures with precision. The tank can heat liquids to a maximum of 99°C and maintain the target temperature with a 1°C variance, ensuring optimal conditions for brewing. The large digital display provides real-time temperature readings, making it easy to adjust settings as needed, allowing brewers to focus on other critical tasks.
Highly Energy-Efficient Insulation
Designed for thermal efficiency, the H0750 features 50mm thick insulation on all sides, with a Lambda value of 0.022 W/mK. This advanced insulation minimises heat loss and reduces power consumption, making the tank highly economical to operate. It’s particularly useful for maintaining water temperatures overnight, significantly reducing energy loads during busy brew days.
Convenient Liquid Removal System
The H0750 features a single 1-inch outlet tap connected to the bottom of the tank, allowing for seamless liquid removal. This practical design ensures minimal waste and makes it easy to transfer hot liquor to your brewing system or other vessels. The tap’s placement simplifies brew day workflows, helping to keep operations efficient and hassle-free.

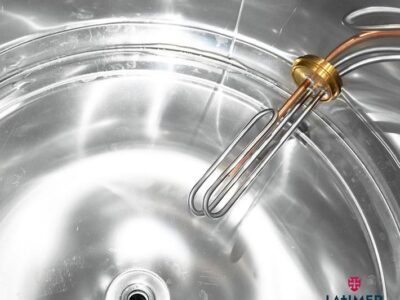

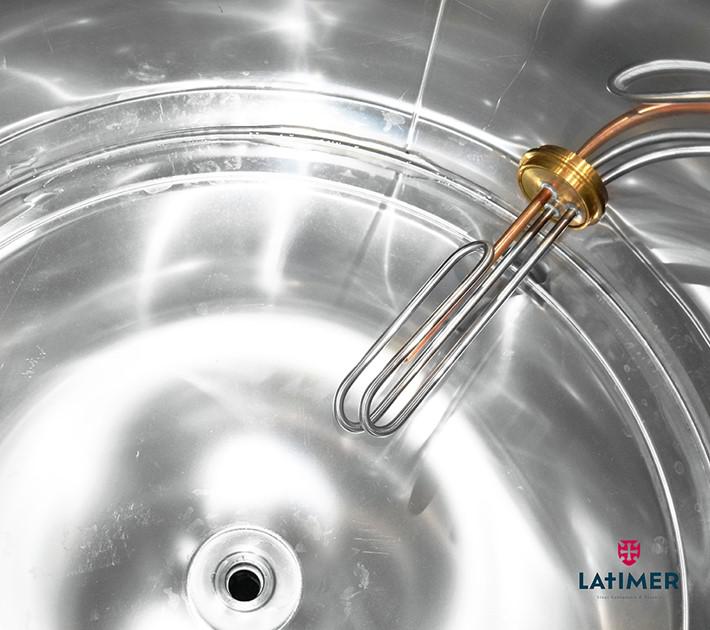

240 Volt Immersion Heater Elements
Our heating systems are powered by 240-volt immersion heater elements, which can be configured in increments of 3kW to suit your specific needs. For smaller tanks, such as those with 200L or 300L capacities, a single 3kW element is typically sufficient. Larger tanks, such as 500L, 700L, and 1000L, often benefit from a 6kW configuration for more efficient heating. While it’s possible to customise the power setup to include additional heating capacity, we generally avoid incorporating three-phase power for these applications, as it significantly increases production costs. For larger tanks, it’s worth noting that with 6kW of power, it may take up to 12 hours to bring a full tank of water to the desired temperature, depending on starting conditions. This setup provides a reliable and cost-effective heating solution for most applications.
Additional Features
- Lightweight at 50kg for its size, allowing for easy integration into brewing setups
- Ideal for overnight pre-heating to optimise brewhouse energy loads during brewing.
- Accurate temperature maintenance ensures consistent water quality for brewing.
- Insulated design keeps water hot for extended periods, improving energy efficiency.
- Built to handle the rigors of commercial brewing with ease.
- The sturdy three-legged stand ensures the tank remains securely in place during use, providing safety and reliability.
- Thanks to its stainless steel construction and simple design, the tank is easy to clean and requires minimal upkeep, saving you time and effort.
- Resistant to corrosion and wear, ideal for long-term use.
Hot Liquor Tank 750L Videos
Frequently Asked Hot Liquor Tank 750L Questions
Can your Hot Liqour Tanks run on a standard power supply?
Yes, our HLTs operate on a 240-volt power supply, eliminating the need for three-phase power.
How precise is the temperature control?
The digital control panel maintains temperatures within a 1°C variance, ensuring consistent performance.
Is the tank insulated?
Yes, all of our HLTs feature 50mm thick insulation with a Lambda value of 0.022 W/mK, delivering superior thermal efficiency.
What industries is this tank suitable for?
It’s ideal for breweries and other facilities requiring precise hot water temperature control for production.
