Mash Tun 300L
Product Code: T0300
Mash Tun 300L
Product Code: T0300
Product Description
The Mash Tun 300L (T0300) is a compact yet highly efficient stainless steel mash tun, purpose-built for breweries and distilleries looking for reliability, thermal performance, and ease of use. Designed with precision and energy efficiency in mind, this mash tun is perfect for startup brewers and those scaling up their operations.
Constructed from 304-grade stainless steel, the T0300 features 50mm thick insulation to minimise heat loss during the mashing process. This advanced insulation ensures the mash temperature drops by only 1-2°C over a 90-minute period, even without additional heat input, helping to reduce energy costs.
The T0300 includes a 300mm manway door for easy access and waste removal, an analogue temperature gauge for monitoring, and a stainless steel false bottom with 3mm holes to prevent grains from clogging the outlet. Additionally, a copper sparge arm integrated into the lid allows for efficient sparging without removing the lid, preserving heat throughout the cycle.
£1350.00 ex VAT
Want to know more? Call us on 01536 645475
Mash Tun 300L Specification
Capacity (L)
300
Diameter (mm)
760
Height (mm)
1510
Insulation 50mm
Yes
Temperature gauge
Yes
Sparge Arm
Yes
Material
304-grade stainless steel
Dry weight (kg)
40
Control panel
No
Power Requirements
N/A
Power installed (kW)
N/A
Energy-Efficient Insulation
Our range of Mash Tuns feature 50mm thick insulation made from highly efficient foam, ensuring minimal heat loss. During a 90-minute mash, temperatures drop by only 1-2°C, eliminating the need for additional heating and reducing energy costs.

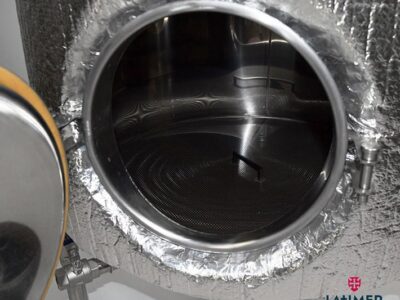

300mm Manway Door for Easy Cleaning
The large manway door allows for quick and easy removal of waste products, simplifying cleaning after each use. Positioned next to the door is an analogue temperature gauge, enabling precise temperature monitoring throughout the mashing process.

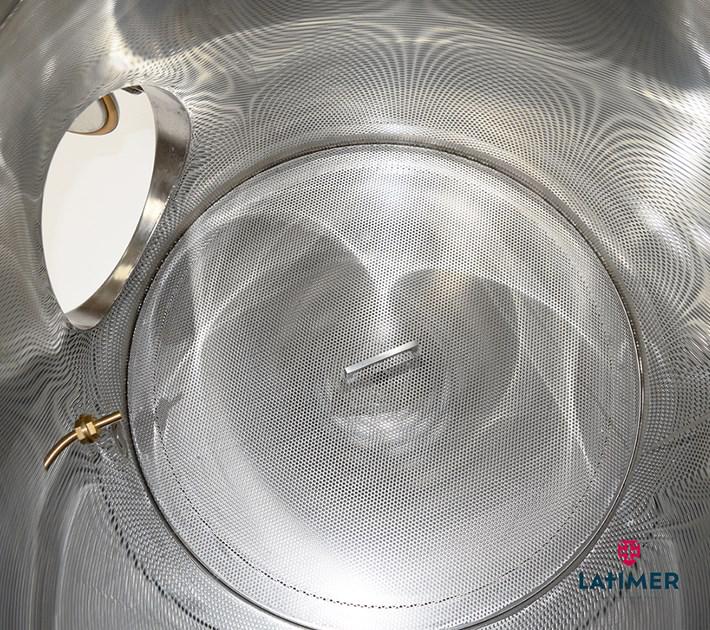

Stainless Steel False Bottom
A stainless steel false bottom with 3mm holes is installed to prevent grains from clogging the outlet. This design optimises efficiency and water flow, ensuring a smooth brewing process every time.

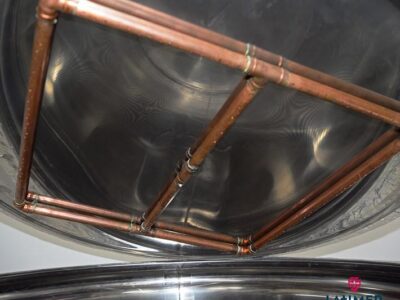

Integrated Copper Sparge Arm
The copper sparge arm is built into the insulated lid, allowing the sparging cycle to be completed without removing the lid. This design prevents heat loss and maintains a stable temperature during the entire process.
Additional Features
- Compact yet versatile, suitable for underfilling and scaling up to full 300L capacity.
- Insulated lid helps retain heat during the sparging cycle, improving mash efficiency.
- Lightweight at 40kg, making it easy to handle and integrate into your setup.
- Designed for brewing and distilling applications, ensuring flexibility and performance.
- Proven to achieve mash efficiencies of up to 94% with proper operation.
- The sturdy three-legged stand ensures the tank remains securely in place during use, providing safety and reliability.
- Thanks to its stainless steel construction and simple design, the tank is easy to clean and requires minimal upkeep, saving you time and effort.
- Ideal for breweries, distilleries, and other facilities that handle solids during production.
- Resistant to corrosion and wear, ideal for long-term use.
Mash Tun 300L Videos
Frequently Asked Mash Tun 300L Questions
Who is the 300L mash tun suitable for?
The T0300 is ideal for startups, small breweries, and distilleries looking for a reliable and efficient mash tun that can scale up production as needed.
How does the false bottom improve efficiency?
The stainless steel false bottom prevents grains from clogging the outlet, optimizing water flow and ensuring smooth drainage during the brewing process.
Is the sparge arm removable?
No, the copper sparge arm is integrated into the lid to maintain temperature stability during the sparging cycle.
What makes the Latimer Ales Mash Tun so energy efficient?
Our Mash Tun’s 50mm thick insulation minimises heat loss, allowing the mash temperature to remain stable without additional heating for up to 90 minutes.
