Mash Tun 750L
Product Code: T0750
Mash Tun 750L
Product Code: T0750
Product Description
The Mash Tun 750L (T0750) is meticulously designed to meet the needs of large-scale breweries and distilleries. With its impressive 750L capacity, this stainless steel mash tun delivers efficiency, precision, and durability. Whether producing high-strength beers or managing large stills, the T0750 optimises your processes while enhancing mash quality.
Built from robust 304-grade stainless steel, the T0750 is equipped with 50mm thick insulation to minimise heat loss, retaining just 1-2°C over a 90-minute mash period—no additional heating required. Its 300mm manway door offers easy access for waste removal, while the stainless steel false bottom with 3mm holes ensures smooth water flow and prevents blockages.
For consistent heat retention during the sparge cycle, the T0750 features an integrated copper sparge arm within the insulated lid. A 1-inch outlet tap at the conical bottom allows for easy drainage and cleaning, making this mash tun an essential component for high-efficiency brewing operations.
£2399.00 ex VAT
Want to know more? Call us on 01536 645475
Mash Tun 750L Specification
Capacity (L)
750
Diameter (mm)
920
Height (mm)
1980
Insulation 50mm
Yes
Temperature gauge
Yes
Sparge Arm
Yes
Material
304-grade stainless steel
Dry weight (kg)
70
Control panel
No
Power Requirements
N/A
Power installed (kW)
N/A
Energy-Efficient Insulation
Our range of Mash Tuns feature 50mm thick insulation made from highly efficient foam, ensuring minimal heat loss. During a 90-minute mash, temperatures drop by only 1-2°C, eliminating the need for additional heating and reducing energy costs.

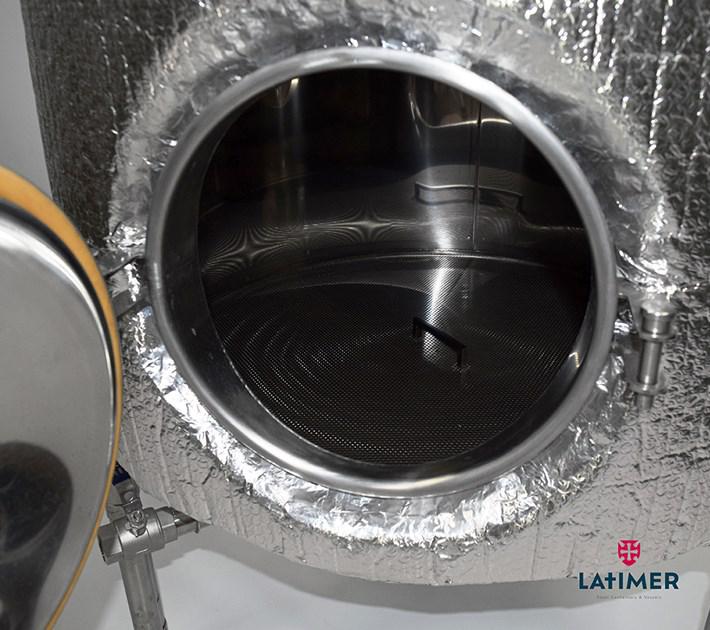

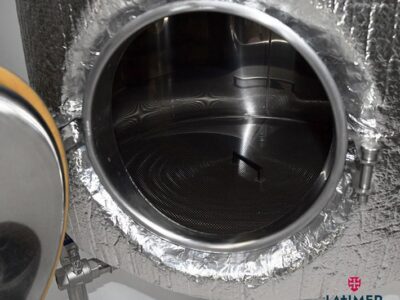

300mm Manway Door for Easy Cleaning

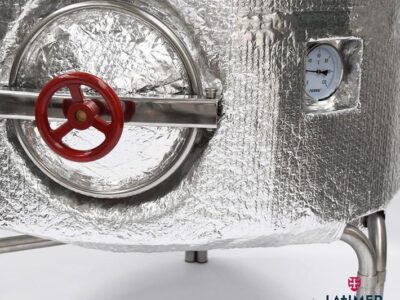

The large manway door allows for quick and easy removal of waste products, simplifying cleaning after each use. Positioned next to the door is an analogue temperature gauge, enabling precise temperature monitoring throughout the mashing process.

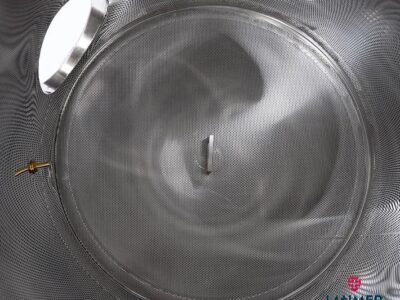

Stainless Steel False Bottom
A stainless steel false bottom with 3mm holes is installed to prevent grains from clogging the outlet. This design optimises efficiency and water flow, ensuring a smooth brewing process every time.
Integrated Copper Sparge Arm
The copper sparge arm is built into the insulated lid, allowing the sparging cycle to be completed without removing the lid. This design prevents heat loss and maintains a stable temperature during the entire process.
Additional Features
- Integrated insulated lid retains heat during sparging, enhancing overall mash efficiency.
- Lightweight yet sturdy for seamless installation and handling.
- Capable of handling underfilled batches or the full 750L capacity.
- Proven design capable of achieving mash efficiencies of up to 94% under optimal conditions.

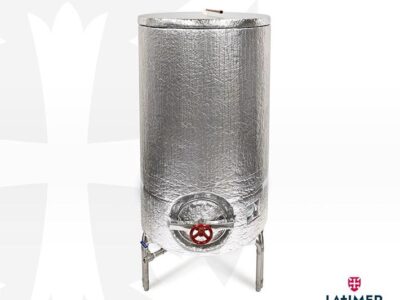

- The sturdy three-legged stand ensures the tank remains securely in place during use, providing safety and reliability.
- Thanks to its stainless steel construction and simple design, the tank is easy to clean and requires minimal upkeep, saving you time and effort.
- Ideal for breweries, distilleries, and other facilities that handle solids during production.
- Resistant to corrosion and wear, ideal for long-term use.
Mash Tun 750L Videos
Frequently Asked Mash Tun 750L Questions
How does the false bottom improve efficiency?
The stainless steel false bottom prevents grains from clogging the outlet, optimizing water flow and ensuring smooth drainage during the brewing process.
How does the sparge arm work?
The built-in copper sparge arm distributes water evenly over the grains during sparging without removing the lid, preserving heat and improving efficiency.
Is the sparge arm removable?
No, the copper sparge arm is integrated into the lid to maintain temperature stability during the sparging cycle.
Is the mash tun easy to clean?
Yes, the 300mm manway door and conical bottom with a 1-inch outlet tap make waste removal and cleaning quick and hassle-free.
What makes the Latimer Ales Mash Tun so energy efficient?
Our Mash Tun’s 50mm thick insulation minimises heat loss, allowing the mash temperature to remain stable without additional heating for up to 90 minutes.
Can this tun handle different batch sizes?
Yes, our Mash Tuns are versatile enough to handle both underfilled and full batches, making them suitable for varying production needs.
